CNC Textile Plotter 2026 Auto Digital Fabric Cutting Machine
Apple Shopping Event
Hurry and get discounts up to 20% Read more
Product Introduction

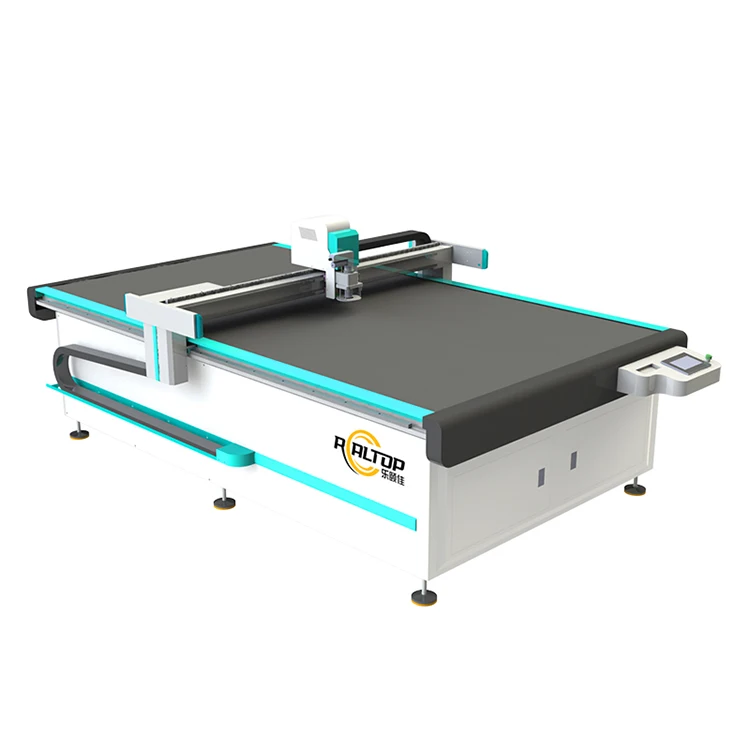

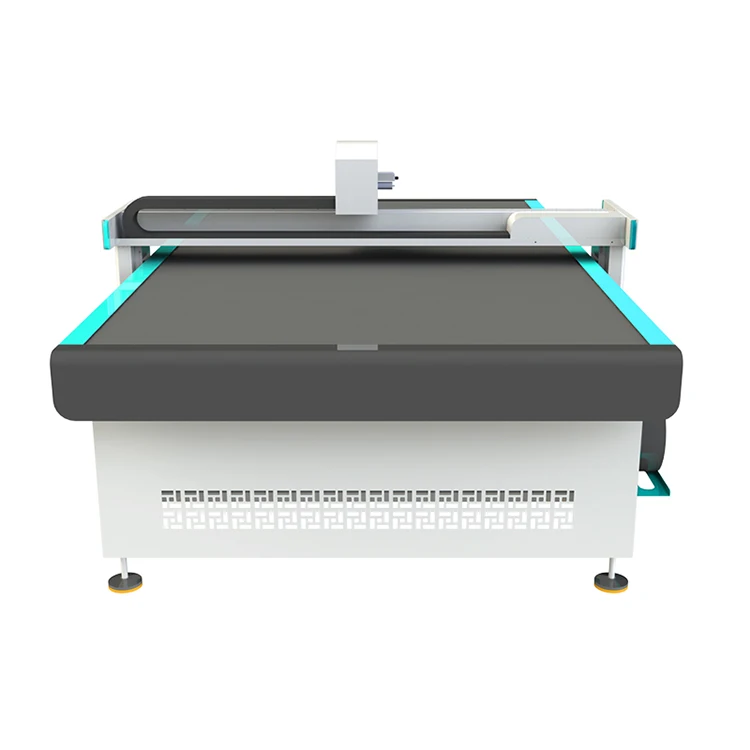

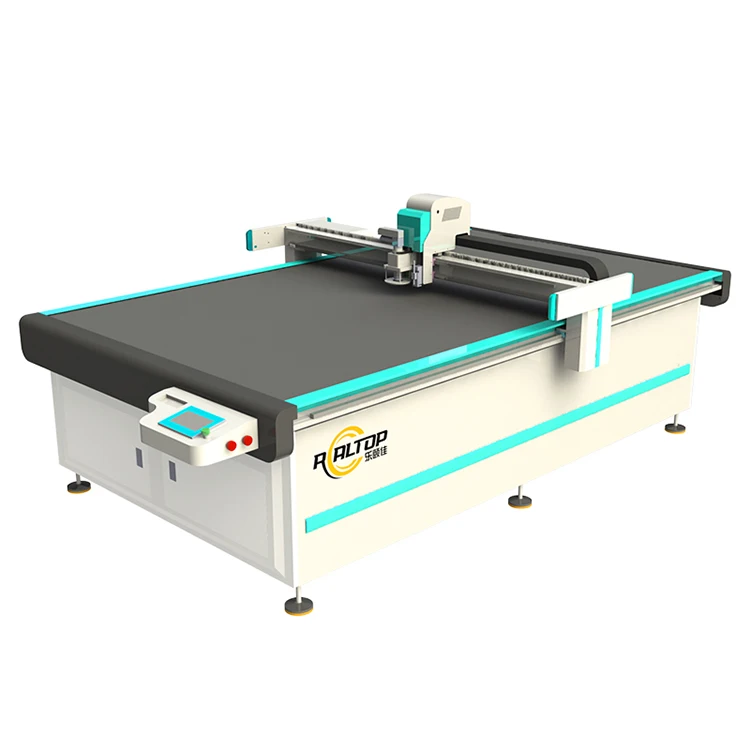

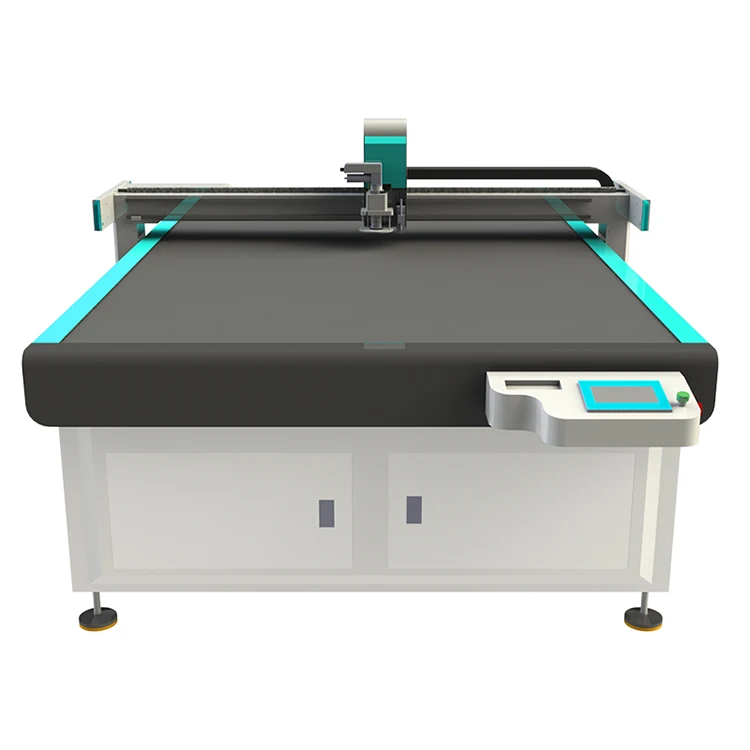

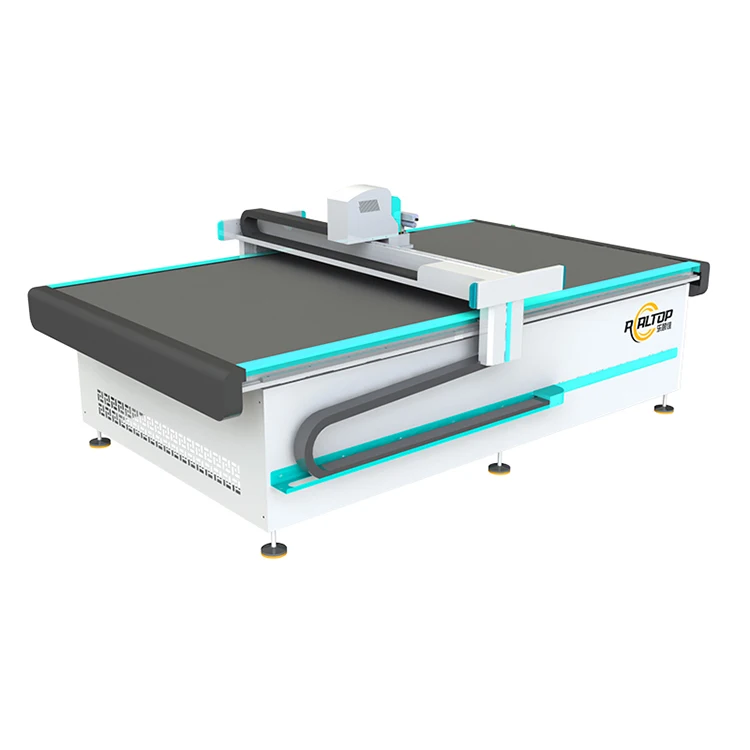

Advanced CNC Textile Plotter Machine 2026 for auto digital fabric cutting, ideal for precision cutting of flexible materials. Efficient and user-friendly solution for textile industry professionals.
Key Specifications
| Type | CNC Textile Plotter |
| Function | Auto Digital Fabric Cutting |
| Year | 2026 Model |
| Application | Flexible Material Processing |
$8,000.00
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
| working area |
2500*1600mm(98.43*62.99in) |
|---|---|
| model number |
RT-D2516 ,RT-S2516 |
Description
RTT2516
Technical parameter | Specification | |||||
1 | Some models | 2516 2518 2520 3016 3020 | ||||
2 | Effective cutting size | 2500*1600 2500*1800 2500*2000 3000*1600 3000*2000 | ||||
3 | Max idle speed | 2500mm/s | ||||
4 | Actual cutting speed | 500-2000mm/s (depending on material thickness and hardness) | ||||
5 | Repeated positioning and cutting accuracy | ±0.1mm (depending on material thickness and hardness) | ||||
6 | Cutting depth control accuracy | 0.03mm | ||||
7 | Repeatability | ±0.01mm | ||||
8 | Voltage | 380V or 220V (optional) | ||||
9 | Air pump power | 9KW | ||||
10 | Main motor power | 2KW | ||||
11 | Motor | Imported Delta drive. optional Japanese Yaskawa. Panasonic servo | ||||
12 | Cutting head type | Imported MAXON vibrating cutter head | ||||
13 | Control interface | 7 inch LCD touch screen | ||||
14 | Wire and Cable | German igus high-flex shielded cable (Foldable times of tens of millions of times) | ||||
15 | Intelligent calculation | Computer intelligent automatic nesting module. greatly improving the utilization rate of materials | ||||
16 | Photoelectric switch | Japan OMRON | ||||
17 | Electrical components | France Schneider. Chint | ||||
18 | Pneumatic Components | Taiwan AirTAC | ||||
19 | Guide | Taiwan Shangyin | ||||
20 | Rack | Taiwan yyc | ||||
21 | Data transfer interface | Internet interface | ||||
22 | Cutting software | CUT-REALTOP | ||||
23 | Intelligent calculation | Computer intelligent automatic nesting module to improve material utilization | ||||
24 | Format conversion software | Laser、JDsoft | ||||
25 | Red light preview function | Preview whether the cutting sample is in the material before processing to prevent misoperation | ||||
26 | Fault intelligent detection | Automatically detect electrical faults when power on. and push codes to the system | ||||
27 | Cutting real-time monitoring | Real-time detection of cutting position. which can monitor the current processing piece and its position at any time | ||||
28 | Safety equipment | Infrared blocking stop and anti-collision protection | ||||
29 | Feeding method | Fixed or feeding (optional) | ||||
30 | Framework | Carbon dioxide protection welding bed. secondary vibration aging treatment | ||||
31 | Total Weight | 1300kg | ||||
32 | Blade | Tungsten steel customized 35#、26#、16#. etc. | ||||
33 | Felt | 4mm Holland imported Ammeraal | ||||
