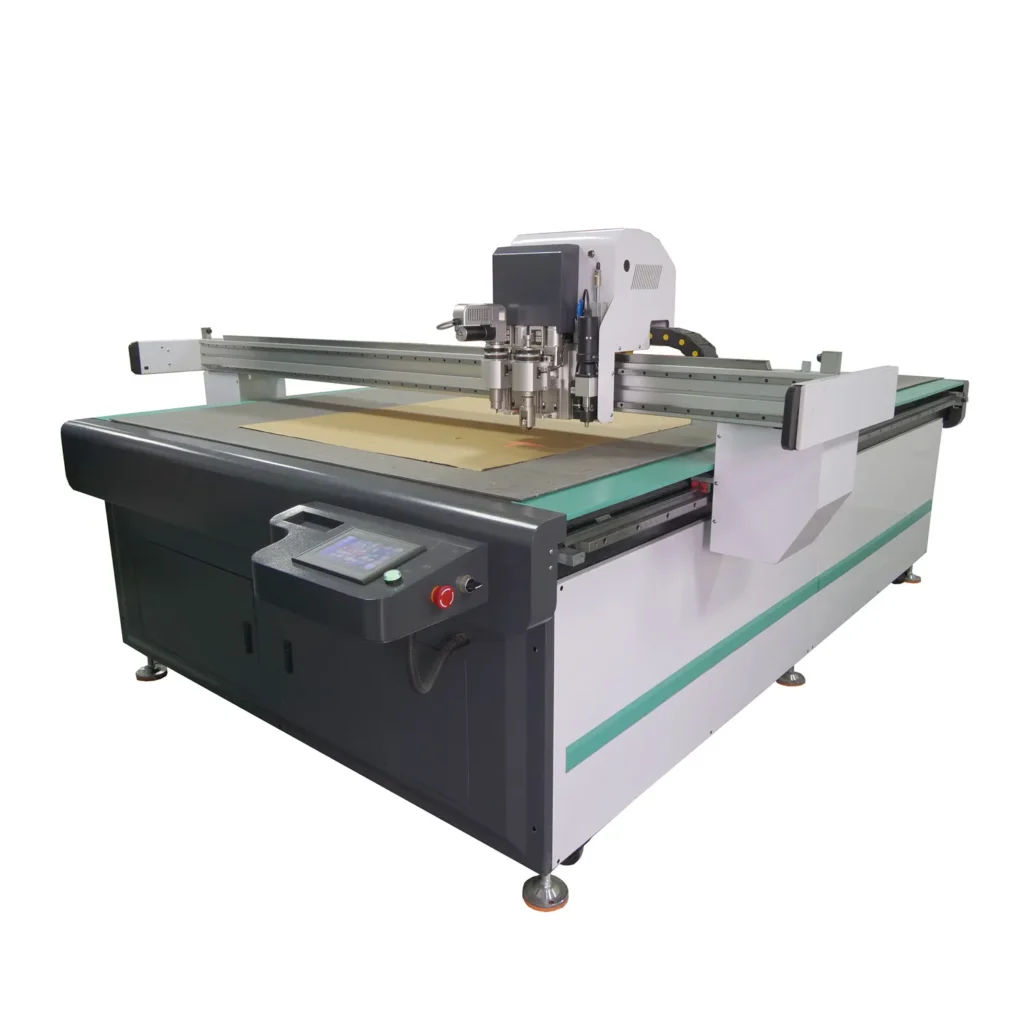

Zhongye CNC Cutter Plotter for Vinyl – Industrial Application

Material-Matched Configuration — every tool head, vacuum zone and software license is verified against your specific sheet size, material thickness and daily volume before the machine leaves Jinan.

Technical Specifications

Application Suitability

Why the Voltage Question Must Come Before the Price

Confirming local supply voltage and frequency against the machine’s 380V ± 10% rating is the single most overlooked step in cross-border equipment procurement.

I shipped a 1600 × 2500 mm cutter plotter to a Middle East facility last year. The buyer’s local supply ran at 415V, and the mismatch was only discovered when the electrician opened the control cabinet on arrival. A replacement transformer took three weeks to source locally, while the production floor sat idle. A CNC oscillating knife cutting machine production line cannot earn its keep if it is sitting unpowered in a corner [NEED_CITE: voltage and frequency standards by export market]. The electrical confirmation must happen at the quotation stage, not the commissioning stage.

Workflow Match Across Packaging, Signage and Flexible Material Jobs

A production manager evaluating a CNC oscillating knife cutting machine production line for carton sample making needs more than a flat table. The RT-D2516/RT-S2516 pairs its Swiss imported oscillating knife head with creasing capability, so a packaging sample goes from nested DXF file to finished creased-and-cut blank without a tool change. The HP-GL compatible instruction system reads the same file formats that most structural packaging design suites already export.

Throughput Reality on Leather, Foam and Composite Sheets

Cutting speed on this platform spans 200 to 800 mm/s, and the actual figure depends entirely on material density and thickness. A 3 mm self-adhesive vinyl sticker runs at the upper end of that band, while a 20 mm sponge composite leather requires slower passes to keep the edge clean. The Delta servo motor and Taiwan Hiwin linear guide maintain ≤ 0.1 mm repeated accuracy across both extremes, which is what keeps contour fidelity tight when the vacuum table is pulling full sheet adsorption [NEED_CITE: typical cutting accuracy expectations for oscillating knife systems].

How Core Parameters Shape Daily Output

The 7.5 kW vacuum pump behind the flat working table is sized for the 1600 × 2500 mm bed area, but adsorption effectiveness depends on how the table is zoned. Small sticker parts need concentrated vacuum in a localized region; a full-sheet corrugated blank needs even pull across the entire surface. The auto-feeding conveyor, fitted with a Germany-imported belt, feeds roll stock continuously so the operator is not manually lifting sheets between cycles. The 9 kW total rated power figure includes the servo drives and vacuum system running simultaneously, which matters when you are sizing the dedicated circuit back at the panel board. Infrared sensors around the cutting perimeter stop the head immediately if an operator reaches into the work envelope during a high-speed traverse.

The Cost of Choosing the Wrong Tool Head for Your Material

A buyer who selects a drag knife for thick foam will get crushed edges and an unusable part. An oscillating head that lacks half-cut capability will cut through the backing paper on sticker stock, destroying the liner and wasting the sheet. When the vacuum zone layout does not match part geometry, small pieces lift mid-cut, the contour drifts, and the entire nest is scrapped [NEED_CITE: common causes of material lift on digital cutting tables]. These failures show up only after the machine is running production — which is why a sample cutting report on your own material, run before the order is finalized, is worth more than any specification sheet.

Why Source This Platform From the Jinan Factory Floor

In-house design and production of both knife and laser cutting systems means the cutting method is matched to your material, not forced into whichever technology happens to be on the showroom floor. Tool head selection, vacuum zoning and software configuration are documented in a written list that ships with the machine, so you can verify every item against your purchase order. The professional carton nesting software is provided with a free license, customizable language and lifelong technical support, eliminating a recurring subscription cost. Sample cutting on the buyer’s own material is performed before the commitment, confirming edge quality, depth and practical throughput. Voltage, plug type and control language are locked in at the order stage — a discipline I learned the hard way after that three-week transformer delay.

Documentation & Verification

• Machine specification sheet listing confirmed tool head and vacuum zone layout for your material
• Electrical schematic with voltage and frequency locked to your local supply standard
• Sample cutting report run on your own material showing edge quality and achievable cutting speed
• Factory test record documenting repeated accuracy and translational velocity before crating
• Software license and file format compatibility note for HP-GL, DXF, AI and PLT imports
• Spare parts list covering consumable blades, belts and vacuum seals with part numbers

Installation, Commissioning & Support

• Dedicated 380V ± 10% circuit rated for 9 kW plus the 7.5 kW vacuum pump on a separate breaker
• Floor space allocation of at least 3450 × 2300 mm with clearance for auto-feeding conveyor infeed
• Machine ships fully assembled; rigging must account for overall height of 1250 mm through facility doors
• First-run parameter setting covers vacuum zone mapping, oscillating frequency and servo tuning per material
• Operator training on the professional carton nesting software in your confirmed language option
• Consumable blade and Germany-imported conveyor belt replacement intervals documented in the maintenance manual

What We Need to Match the Machine to Your Line

Tell us the material type, maximum thickness and sheet or roll dimensions you run most often. Share your typical daily volume and the file formats your design team already uses, so the nesting software is configured before delivery. Confirm your facility voltage, frequency and preferred control panel language so the electrical build matches your shop floor from day one.

Frequently Asked Questions

Q: How is the cutting configuration matched to my specific material and production volume?
A: We start with your material type, thickness and daily output target, then recommend the appropriate tool head — oscillating knife, drag knife or creasing wheel — along with vacuum zone layout. A sample cut on your actual material is run before the order is confirmed, and the full configuration is documented in a written list that ships with the machine.

Q: Can the software import my existing design files without conversion?
A: The professional carton nesting software is HP-GL compatible and accepts standard formats including DXF, AI and PLT. Before the order is finalized, we verify file format compatibility with your design workflow and confirm the nesting parameters match your material yield targets, documented in a written compatibility note.

Q: What throughput can I realistically expect on my material?
A: Cutting speed ranges from 200 to 800 mm/s depending on material density and thickness. The sample cutting report we produce on your own stock before commitment shows the actual achievable speed, edge quality and contour accuracy — so the throughput figure you plan around is based on real data, not a catalog claim.

Q: How is vacuum table zoning handled for small parts versus full-sheet cutting?
A: The 7.5 kW vacuum pump serves the 1600 × 2500 mm flat working table, and the adsorption zones are configured according to your typical part geometry. Small sticker or gasket parts require concentrated localized vacuum to prevent lift at high traverse speeds, while full-sheet corrugated blanks need even pull across the entire bed area.

Q: What does on-site installation and after-sales support cover?
A: Installation covers electrical connection to your confirmed 380V ± 10% supply, mechanical leveling and vacuum zone calibration. Operator training is delivered in your chosen language and covers software operation, tool head changes and routine maintenance. Ongoing technical support for the nesting software is included on a lifelong basis.
